European Journal of Chemistry 2013, 4(4), 366-369. doi:10.5155/eurjchem.4.4.366-369.862

Uptake of acid black 210 dye by organo-montmorillonite clay minerals


Cristina Volzone (1,*) , Norma Gallegos (2) , Carlos Cantera (3) , Alberto Greco (4)

(1) Centro de Tecnología de Recursos Minerales y Cerámica (CETMIC), Centro Científico Tecnológico-Consejo Nacional de Investigaciones Científicas y Tecnológicas- La Plata, Comisión de Investigaciones Científicas de la Provincia de Buenos Aires, M. B. Gonnet, 1897, Argentina
(2) Centro de Investigación y Desarrollo en Ciencias Aplicadas (CINDECA), Centro Científico Tecnológico-Consejo Nacional de Investigaciones Científicas y Tecnológicas- La Plata, Facultad de Ingeniería, Universidad Nacional de La Plata, La Plata, 1900, Argentina
(3) Centro de Investigación y Desarrollo del Cuero (CITEC)-Instituto Nacional de Tecnología Industrial, Comisión de Investigaciones Científicas de la Provincia de Buenos Aires, M. B. Gonnet, 1897, Argentina
(4) Centro de Investigación y Desarrollo del Cuero (CITEC)-Instituto Nacional de Tecnología Industrial, Comisión de Investigaciones Científicas de la Provincia de Buenos Aires, M. B. Gonnet, 1897, Argentina
(*) Corresponding Author

Received: 27 Jun 2013, Accepted: 22 Jul 2013, Published: 31 Dec 2013

Abstract

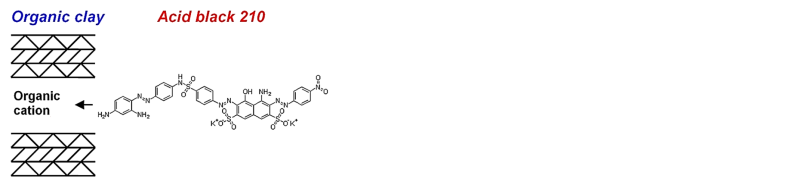

Two clays rich in montmorillonite were modified and used as adsorbents. The clay minerals were modified with hexadecylpyridinium cation (HDP+) in order to obtain organo-montmorillonites, which were used for retaining acid black 210 dye from water solution. This dye is frequently used in tanning industry. The retentions of the anionic dye by organo-montmorillonites were evaluated by using complete UV-visible spectrum, analyzing the concentrations of dye solutions before (50 mg/L) and after the contact with the adsorbent. The solids were characterized by X-ray diffraction (XRD) and infrared analyses (FT-IR). The interlayer spacing of the montmorillonites increased, after organic cation exchange, from 13.0-14.9 Å to 19.0-22.0 Å and allowed the uptake of acid black 210 dye. The most disordered arrangement of HDP in montmorillonite, deduced by XRD and FT-IR analyses, was better for higher retentions of acid black dye.

4_4_366_369

Keywords


Clays; Dyes; Adsorption; IR spectroscopy; X-ray diffraction; UV/Vis spectroscopy

Full Text:

PDF /    /


DOI: 10.5155/eurjchem.4.4.366-369.862

Article Metrics


This Abstract was viewed 706 times | PDF Article downloaded 222 times

Citations

/


[1]. Tahani Achouak Chinar, Mohammed Benbouzid
Preparation and characterization of an efficient zeolitic material from a local natural kaolinitic clay and its uses in the elimination of an organic dye
European Journal of Chemistry  7(4), 410, 2016
DOI: 10.5155/eurjchem.7.4.410-415.1486
/


References

[1]. Crini, G. Bioresource Technol. 2006, 97, 1061-1085.
http://dx.doi.org/10.1016/j.biortech.2005.05.001
PMid:15993052

[2]. Churchman, G. J. Appl. Clay Sci. 2002, 21, 177-189.
http://dx.doi.org/10.1016/S0169-1317(01)00099-0

[3]. Ozcan, A. S.; Erdem, B.; Ozcan, A. J. Colloid Interf. Sci. 2004, 280, 44-54.
http://dx.doi.org/10.1016/j.jcis.2004.07.035
PMid:15476772

[4]. Ozcan, A. S.; Ozcan, A. J. Colloid Interf. Sci. 2004, 276, 39-46.
http://dx.doi.org/10.1016/j.jcis.2004.03.043
PMid:15219427

[5]. Tsai, W. T.; Chang, Y. M.; Lai, C. W.; Lo, C. C. Appl. Clay Sci. 2005, 29, 149-154.
http://dx.doi.org/10.1016/j.clay.2004.10.004

[6]. Alexandros, M. R.; Vassiliadis, A. Micropor. Mesopor. Mat. 2008, 116, 732-740.
http://dx.doi.org/10.1016/j.micromeso.2008.03.017

[7]. Wang, L.; Wang, A. J. Hazard Mater. 2008, 160, 173-180.
http://dx.doi.org/10.1016/j.jhazmat.2008.02.104
PMid:18400385

[8]. Benguella, B. ; Yacouta-Nour, A. CR. Acad. Sci. II C 2009, 12, 762-771.

[9]. Lian, L.; Guo, L.; Guo, C. J. Hazard Mater. 2009, 161, 126-131.
http://dx.doi.org/10.1016/j.jhazmat.2008.03.063
PMid:18487014

[10]. Bailly, J.; Volzone, C.; Cantera, C.; Greco, A. XXXI IULTCS (International Union of Leather Technologisys and Chemist Societies) Congress, Valencia (Spain), 2011, 1-8.

[11]. Volzone, C.; Garrido, L. B. J. Environ. Manage. 2008, 88, 1640-1648.
http://dx.doi.org/10.1016/j.jenvman.2007.08.003
PMid:17900792

[12]. Lagaly, G. Philos. T. R. Soc. A 1984, 311, 315-332.
http://dx.doi.org/10.1098/rsta.1984.0031

[13]. Farmer, V. C. Clay Miner. 1968, 7, 373-387.
http://dx.doi.org/10.1180/claymin.1968.007.4.01

[14]. He, H.; Frost L. R.; Zhu, J. Spectrochim. Acta A 2004, 60, 2853-2859
http://dx.doi.org/10.1016/S1386-1425(03)00337-8

[15]. Li, Z.; Wei-Teh, J.; Hanlie, H. Spectrochim. Acta A 2008, 71, 1525-1534.
http://dx.doi.org/10.1016/j.saa.2008.05.015
PMid:18573686

[16]. Vidal, N. C.; Volzone, C. Anais do 6° Encontro Brasileiro sobre Adsorcao, Maringa (Brasil) 2006, CD-ROM 1, 23, 1-5.


How to cite


Volzone, C.; Gallegos, N.; Cantera, C.; Greco, A. Eur. J. Chem. 2013, 4(4), 366-369. doi:10.5155/eurjchem.4.4.366-369.862
Volzone, C.; Gallegos, N.; Cantera, C.; Greco, A. Uptake of acid black 210 dye by organo-montmorillonite clay minerals. Eur. J. Chem. 2013, 4(4), 366-369. doi:10.5155/eurjchem.4.4.366-369.862
Volzone, C., Gallegos, N., Cantera, C., & Greco, A. (2013). Uptake of acid black 210 dye by organo-montmorillonite clay minerals. European Journal of Chemistry, 4(4), 366-369. doi:10.5155/eurjchem.4.4.366-369.862
Volzone, Cristina, Norma Gallegos, Carlos Cantera, & Alberto Greco. "Uptake of acid black 210 dye by organo-montmorillonite clay minerals." European Journal of Chemistry [Online], 4.4 (2013): 366-369. Web. 21 Oct. 2019
Volzone, Cristina, Gallegos, Norma, Cantera, Carlos, AND Greco, Alberto. "Uptake of acid black 210 dye by organo-montmorillonite clay minerals" European Journal of Chemistry [Online], Volume 4 Number 4 (31 December 2013)

DOI Link: https://doi.org/10.5155/eurjchem.4.4.366-369.862
