Structural characterization and crystal packing of the isoquinoline derivative


Viktor Vrabel (1) orcid , Lubomir Svorc (2,*) orcid , Julius Sivy (3) orcid , Stefan Marchalin (4) orcid , Peter Safar (5) orcid

(1) Institute of Analytical Chemistry, Faculty of Chemical and Food Technology, Slovak University of Technology in Bratislava, Radlinského 9, SK-812 37 Bratislava, Slovak Republic
(2) Institute of Analytical Chemistry, Faculty of Chemical and Food Technology, Slovak University of Technology in Bratislava, Radlinského 9, SK-812 37 Bratislava, Slovak Republic
(3) Institute of Mathematics and Physics, Faculty of Mechanical Engineering, Slovak University of Technology in Bratislava, Námestie slobody 17, SK-812 31 Bratislava, Slovak Republic
(4) Institute of Organic Chemistry, Catalysis and Petrochemistry, Faculty of Chemical and Food Technology, Slovak University of Technology in Bratislava, Radlinského 9, SK-812 37 Bratislava, Slovak Republic
(5) Institute of Organic Chemistry, Catalysis and Petrochemistry, Faculty of Chemical and Food Technology, Slovak University of Technology in Bratislava, Radlinského 9, SK-812 37 Bratislava, Slovak Republic
(*) Corresponding Author

Received: 07 Jun 2018 | Revised: 30 Jun 2018 | Accepted: 08 Jul 2018 | Published: 30 Sep 2018 | Issue Date: September 2018

Abstract

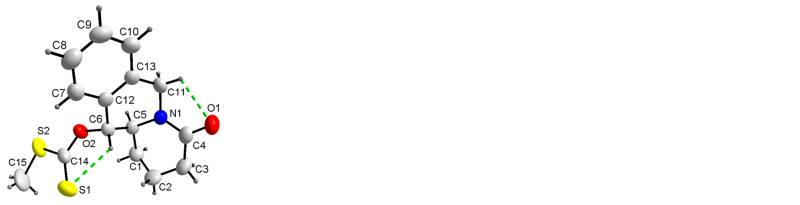

We report the crystal and molecular structure of a new isoquinoline-derivative, namely methyl O-[(11R, 11aS)-4-oxo-1, 3, 4, 6, 11, 11a-hexahydro-2H-pyrido[1, 2-b]isoquinolin-11-yl]carbonodithioate (I), C15H17NO2S2, which crystallizes in the non-centrosymmetric space group P212121 and its absolute structure was confirmed by anomalous dispersion effects in diffraction measurements on the crystals. Two central six-membered heterocyclic rings adopt a distorted half-chair conformation. The molecules are linked by a combination of weak C—H∙∙∙O, C—H∙∙∙S, C—H∙∙∙p inter- and intra-molecular interactions resulting in a three-dimensional network in the crystal structure. Crystal Data for C15H17NO2S2 (=307.41 g/mol): orthorhombic, space group P212121 (no. 19), a = 5.2804(5) Å, b = 8.1347(17) Å, c = 35.015(4) Å, = 1504.1(4) Å3, Z = 4, T = 298(2) K, μ(MoKα) = 0.354 mm-1, Dcalc =1.358 g/cm3, 20270 reflections measured (5.522° ≤ 2Θ ≤ 50.69°), 2757 unique (Rint = 0.0346, Rsigma = 0.0203) which were used in all calculations. The final R1 was 0.0389 (I > 2σ(I)) and wR2 was 0.0965 (all data).


Keywords


Interaction; Isoquinoline; Conformation; Hydrogen bond; X-ray diffraction; Crystal structure

Full Text:

PDF /    /


DOI: 10.5155/eurjchem.9.3.189-193.1758

Links for Article


| | | | | | |

| | | | | | |

| |

Related Articles




Article Metrics

This Abstract was viewed 596 times | PDF Article downloaded 192 times

Funding information


The Slovak Research and Development Agency (APVV 0204-10) and the Grant Agency of the Slovak Republic (VEGA 1/0873/15, VEGA 1/0371/16 and KEGA 035STU-4/2017).

References

[1]. Mansour, A. M.; Hassaneen, H. M.; Mohammed, Y. Sh.; Abdel-Ghani, N. T. J. Mol. Struct. 2013, 1045, 180-190.
https://doi.org/10.1016/j.molstruc.2013.04.032

[2]. Kidwai, M.; Bhushan, K. R.; Sapra, P.; Saxena, R. K.; Gupta, R. Bioorg. Med. Chem. Lett. 2000, 8, 69‐72.
https://doi.org/10.1016/S0968-0896(99)00256-4

[3]. Strekowski, L.; Mokrosz, J. L.; Honkan, V. A.; Czarxy, A.; Ceyla, M. T.; Wydra, R. L.; Patterson, S. E.; Schinazi, R. F. J. Med. Chem. 1991, 34, 1739‐1746.
https://doi.org/10.1021/jm00109a031

[4]. Bray, P. G.; Hawley, S. R.; Ward, S. A. Mol. Pharmacol. 1996, 50, 1551‐1558.

[5]. Sparatore, A.; Basilico, N.; Casagrande, M.; Parapini, S.; Taramelli, D.; Brun, R.; Wittlin, S.; Sparatore, F. Bioorg. Med. Chem. Lett. 2008, 18, 3737‐3740.
https://doi.org/10.1016/j.bmcl.2008.05.042

[6]. Sweeney, A. W.; Blackburn, C. R. B.; Rieckmann, K. H. Am. J. Trop. Med. Hyg. 2004, 71, 187‐189.

[7]. Deady, L. W.; Desneres, J.; Kaye, A. J.; Finlay, G. J.; Baguley, B. C.; Denny, W. A. Bioorg. Med. Chem. 2001, 9, 445‐452.
https://doi.org/10.1016/S0968-0896(00)00264-9

[8]. Khan, K. M.; Zaify, Z. S.; Khan, Z. A. Drug Res. 2000, 50, 915‐922.

[9]. Abuelizz, H. A.; Al-Salahi, R.; Al-Asri, J.; Mortier, J.; Marzouk, M.; Ezzeldin, E.; Ali, A. A.; Khalil, M. G.; Hazem, G. W.; Ghabbour, A.; Almehizia, A. A.; Abdel-Jaleel, G. A. Chem. Cent. J. 2017, 11, 103, 1-14.

[10]. Griffith, K. S.; Lewis, L. S.; Mali, S.; Parise, M. E. JAMA 2007, 297(20), 2264‐2277.
https://doi.org/10.1001/jama.297.20.2264

[11]. Yasukawa, K.; Takido, M.; Ikekawa, T.; Shimada, F.; Takeuchi, M.; Nakagawa, S. Chem. Pharm. Bull. 1991, 39, 1462‐1465.
https://doi.org/10.1248/cpb.39.1462

[12]. Werbel, L. M.; Angelo, M.; Fry, D. W.; Worth, D. F. J. Med. Chem. 1986, 29, 1321‐1322.
https://doi.org/10.1021/jm00157a040

[13]. Pagac, T.; Safar, P.; Marchalin, S.; Jezikova, Z.; Balonova, B.; Supolikova, M.; Novakova, E.; Kubickova, J.; Soral, M.; Sivy, J.; Olejnikova. P. Monatsh. Chem. 2018, in press accepted.

[14]. Oxford Diffraction 2009, CrysAlisPro. Oxford Diffraction Ltd, Abingdon, Oxfordshire, England.

[15]. Sheldrick, G. M. Acta Cryst. A 2008, 64, 112‐122.
https://doi.org/10.1107/S0108767307043930

[16]. Brandenburg, K. 2001, DIAMOND. Crystal Impact GbR, Bonn, Germany.

[17]. Allen, F. H.; Johnson, O.; Shields, G. P.; Smith, B. R.; Towler, M. J. Appl. Cryst. 2004, 37, 335‐338.
https://doi.org/10.1107/S0021889804003528

[18]. Spek, A. L. Acta Cryst. 2009, D65, 148‐155.

[19]. Farrugia, L. J. J. Appl. Cryst. 1997, 30, 565-565.
https://doi.org/10.1107/S0021889897003117

[20]. Clark, R. C.; Reid, J. S. Acta Cryst. 1995, A51, 887-897.
https://doi.org/10.1107/S0108767395007367

[21]. Cremer, D.; Pople, J. A. J. Am. Chem. Soc. 1975, 97, 1354‐1362.
https://doi.org/10.1021/ja00839a011

[22]. Bernstein, J.; Davis, R. E.; Shimoni, L.; Chang, N. L. Angew. Chem. Int. Ed. Engl. 1995, 34, 1555‐1573.
https://doi.org/10.1002/anie.199515551

Supporting information


The Supplementary Material for this article can be found online at: Supplementary files

How to cite


Vrabel, V.; Svorc, L.; Sivy, J.; Marchalin, S.; Safar, P. Eur. J. Chem. 2018, 9(3), 189-193. doi:10.5155/eurjchem.9.3.189-193.1758
Vrabel, V.; Svorc, L.; Sivy, J.; Marchalin, S.; Safar, P. Structural characterization and crystal packing of the isoquinoline derivative. Eur. J. Chem. 2018, 9(3), 189-193. doi:10.5155/eurjchem.9.3.189-193.1758
Vrabel, V., Svorc, L., Sivy, J., Marchalin, S., & Safar, P. (2018). Structural characterization and crystal packing of the isoquinoline derivative. European Journal of Chemistry, 9(3), 189-193. doi:10.5155/eurjchem.9.3.189-193.1758
Vrabel, Viktor, Lubomir Svorc, Julius Sivy, Stefan Marchalin, & Peter Safar. "Structural characterization and crystal packing of the isoquinoline derivative." European Journal of Chemistry [Online], 9.3 (2018): 189-193. Web. 23 Nov. 2020
Vrabel, Viktor, Svorc, Lubomir, Sivy, Julius, Marchalin, Stefan, AND Safar, Peter. "Structural characterization and crystal packing of the isoquinoline derivative" European Journal of Chemistry [Online], Volume 9 Number 3 (30 September 2018)
