European Journal of Chemistry 2014, 5(4), 618-627. doi:10.5155/eurjchem.5.4.618-627.1089

Fabrication of flexible nanostructured silver-polymer films for sensors and bio-warfare or bacterial treatment and conducting gold-silver-polymer film for flexible electronics


Syeda Khurshida Begum (1,*)

(1) Department of Chemistry, State University of New York at Binghamton, NY 13902, USA
(*) Corresponding Author

Received: 09 May 2014, Accepted: 31 May 2014, Published: 31 Dec 2014

Abstract

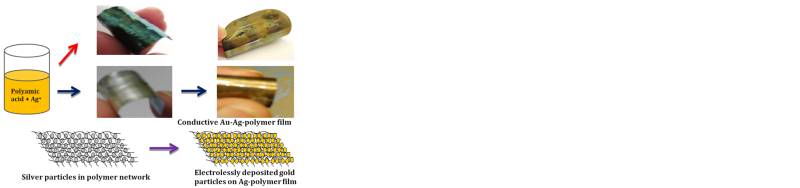

Flexible nanostructured and conducting metal-polymer films have been found promising applications in pharmaceuticals and flexible electronics. These could be used as anti-bacterial agent, bio-warfare treatment, or as sensors for environmental monitoring and protection. However, mechanical strength and metal-polymer adhesion are crucial issues for practical applications of such films. Another issue associated with synthesis of such polymers is the necessity of a simple, convenient and cost-effective method. This work focused on the above issues and reports the synthesis of nanostructured Ag-polymer films (brown, blue and golden colored) and conductive Au-Ag-polymer film with a good combination of flexibility, mechanical strength and metal-polymer adhesion. The films were synthesized by simple and cost-effective routes. Ag-polymer films were prepared by one-step method through studying the effect of metal concentration and curing process. Conductive film was obtained by gold plating on the selected Ag-polymer film. SEM and EDS clearly indicated the existence of metal particles on the metal-polymer films.


Keywords


Flexible electronic; Conducting polymer; Anti-bacterial activity; Anti-bio-warfare agent; Nanostructured polymer; Metal-polymer composite

Full Text:

PDF /    /


DOI: 10.5155/eurjchem.5.4.618-627.1089

Article Metrics


This Abstract was viewed 414 times | PDF Article downloaded 212 times

References

[1]. Strunskus, T.; Grunze, M.; Kochendoerfer, G.; Ch-Woll. W. Langmuir 1996, 12, 2712-2725.
http://dx.doi.org/10.1021/la950125v

[2]. Siegel, J.; Kotal, V. Acta Polytechnica 2007, 47, 9-11.

[3]. Xi-Shu, W.; Hua-Ping, T.; Xu-Dong, Li; Xin, H. Int. J. Mol. Sci. 2009, 10, 5257-5284.

[4]. Rubira, A. F.; Rancourt, J. D.; Caplan, M. L.; Clair, A. K. St.; Taylor, L. T. Chem. Mater. 1994, 6, 2351-2358.
http://dx.doi.org/10.1021/cm00048a022

[5]. Pi-Jiun, L.; Mao-Chieh C. Jpn. J. Appl. Phys. 1999, 38, 4863-4866.
http://dx.doi.org/10.1143/JJAP.38.4863

[6]. Pfluger, S.; Wehner, M.; Jansen, F.; Kruck, T.; Lupp, F. Appl. Surf. Sci. 1995, 86, 504-508.
http://dx.doi.org/10.1016/0169-4332(94)00460-9

[7]. Southward, R. E.; Thompson, D. S.; Thompson, D. W.; Clair, A. K. St. Chem. Mater. 1999, 11, 501-507.
http://dx.doi.org/10.1021/cm981014v

[8]. Southward, R. E.; Thompson, D. W. Mater. Des. 2001, 22(7), 565-575.
http://dx.doi.org/10.1016/S0261-3069(01)00017-6

[9]. Qi, S.; Wang, W.; Wu, D.; Wu, Z.; Jin, R. Eur. Polym. J. 2006, 42, 2023-2030.
http://dx.doi.org/10.1016/j.eurpolymj.2006.03.009

[10]. Qi, S.; Wu, Z.; Wu, D.; Wang, W.; Jin, R. Chem. Mater. 2007, 19(3), 393-401.
http://dx.doi.org/10.1021/cm062016f

[11]. Kim, J.; You, J.; Kim, E. Macromolecules 2010, 43(5), 2322-2327.
http://dx.doi.org/10.1021/ma9025306

[12]. Guo, S.; Dong, S. J. Mater. Chem. 2011, 21, 16704-16716.
http://dx.doi.org/10.1039/c1jm11382h

[13]. Hu, L.; Wu, H.; Cui, Y. MRS Bull. 2011, 36, 760-765.
http://dx.doi.org/10.1557/mrs.2011.234

[14]. Jensen, T.; Kelly, L.; Lazarides, A.; Schatz, G. C. J. Cluster Sci. 1999, 10, 295-317.
http://dx.doi.org/10.1023/A:1021977613319

[15]. Doria, G.; Conde, J.; Veigas, B.; Giestas, L.; Almeida, C.; Assuncao, M.; Rosa, J.; Baptista, P. V. Sensors 2012, 12, 1657-1687.
http://dx.doi.org/10.3390/s120201657

[16]. Conde, J.; Doria, G.; Baptista, P. J. Drug. Deliv. 2012, Article ID 751075, 12 pages.

[17]. Balazs, A. C.; Emrick, T.; Russel, T. P. Science 2006, 314, 1107-1110.
http://dx.doi.org/10.1126/science.1130557

[18]. Usuki, A.; Kojima, M.; Fukushima, Y.; Kamigaito, O. J. Mater. Res. 1993, 8, 1179-1184.
http://dx.doi.org/10.1557/JMR.1993.1179

[19]. Polonskyi, O.; Solar, P.; Kylian, O.; Drabik, M.; Artemenko, A.; Kousal, J.; Hanus, J.; Pesick, J.; Matolinova, I.; Kolibalova, E.; Slavínska, D.; Biederman, H. Thin Solid Films 2012, 520, 4155-4162.
http://dx.doi.org/10.1016/j.tsf.2011.04.100

[20]. Pillalamarri, S. K.; Blum, F. D.; Tokuhiro, A. T.; Bertino, M. F. Chem. Mater. 2005, 17, 5941-5944.
http://dx.doi.org/10.1021/cm050827y

[21]. Xing, S.; Zhao, G. Mater. Lett. 2007, 61, 2040-2044.
http://dx.doi.org/10.1016/j.matlet.2006.08.011

[22]. Wang, Y.; Li, Y.; Sun, G.; Zhang, G.; Liu, H.; Du, J.; Yang, S.; Bai, J.; Yang, Q. J. Appl. Polym. Sci. 2007, 105(6), 3618-3622.
http://dx.doi.org/10.1002/app.25003

[23]. Balan, L.; Burget, D. Eur. Polym. J. 2006, 42, 3180-3189.
http://dx.doi.org/10.1016/j.eurpolymj.2006.08.016

[24]. Liu, C.; Yu, X. Nanoscale Res. Lett. 2011, 6, 75-82.
http://dx.doi.org/10.1186/1556-276X-6-75

[25]. Madaria, A. R.; Kumar, A.; Zhou, C. Nanotechnology 2011, 22(24), 245201-245207.
http://dx.doi.org/10.1088/0957-4484/22/24/245201

[26]. Byrne, M. T.; Gunko, Y. K. Adv. Mater. 2009, 22(15), 1672-1688.
http://dx.doi.org/10.1002/adma.200901545

[27]. Andrews, R.; Weisenberger, M. C. Curr. Opin. Solid State Mater. Sci. 2004, 8, 31-37.
http://dx.doi.org/10.1016/j.cossms.2003.10.006

[28]. Al-Saleh, M. H.; Sundararaj, U. Carbon 2009, 47, 2-22.
http://dx.doi.org/10.1016/j.carbon.2008.09.039

[29]. Hu, X.; Dong, S. J. Mater. Chem. 2008, 18, 1279-1295.
http://dx.doi.org/10.1039/b713255g

[30]. Luo, X.; Morrin, A.; Killard, A. J.; Smyth, M. R. Electroanalysis 2006, 18(4), 319-326.
http://dx.doi.org/10.1002/elan.200503415

[31]. Otsuka, H.; Nagasaki, Y.; Kataoka, K. Adv. Drug. Deliv. Rev. 2003, 55, 403-419.
http://dx.doi.org/10.1016/S0169-409X(02)00226-0

[32]. Sondi, I.; Salopek-Sondi, B. J. Colloid Interface Sci. 2004, 275, 177-182.
http://dx.doi.org/10.1016/j.jcis.2004.02.012

[33]. Lee, D.; Cohen, R. E.; Rubner, M. F. Langmuir 2005, 21(21), 9651-9659.
http://dx.doi.org/10.1021/la0513306

[34]. Aslan, K.; Baillie, L. W.; Geddes, C. D. J. Med CBR Def. 2010, 8. 1-21

[35]. Kim, J. S.; Kuk, E.; Yu, K. N.; Kim, J. H.; Park, S. J.; Lee, H. J.; Kim, S. H.; Park, Y. K.; Park, Y. H.; Wang, C. Y.; Kim, Y. K.; Lee, Y. S.; Jeong, D. H.; Cho, M. H. Nanomedicine: NBM. 2007, 3, 95-101.
http://dx.doi.org/10.1016/j.nano.2006.12.001

[36]. Clement, J. L.; Jarrett, P. S. Met.-Based Drugs 1994, 1, 467-482.
http://dx.doi.org/10.1155/MBD.1994.467

[37]. Akamatsu, K.; Tsuboi, N.; Hatakenaka, Y.; Deki, S. J. Phys. Chem. B 2000, 104, 10168-10173.
http://dx.doi.org/10.1021/jp0016028

[38]. Li, Y.; Lu, Q.; Qian, X.; Zhu, Z.; Yin, J. Appl. Surf. Sci. J. 2004, 233(1-4), 299-306.
http://dx.doi.org/10.1016/j.apsusc.2004.03.235

[39]. Xiaohong, L.; Wang, J.; Zhang, J.; Liu, B.; Zhou, J.; Yang, S. Thin Solid Films 2007, 515, 7870-7875.
http://dx.doi.org/10.1016/j.tsf.2007.03.054

[40]. Deng, Y.; Dang, G.; Zhou, H.; Rao, X.; Chen, C. Mater. Lett. 2008, 62, 1143-1146.
http://dx.doi.org/10.1016/j.matlet.2007.08.002

[41]. Frankenthal R. P.; Becker, W. H. J. Electrochem. Soc. 1979, 126, 1718-1719.
http://dx.doi.org/10.1149/1.2128783

[42]. Okinaka, Y. Plating 1970, 57, 914-920.

[43]. Gaudiello, J. G. IEEE Trans. Compon. Packag. Manuf. Technol. Part A 1996, 19, 41-44.
http://dx.doi.org/10.1109/95.486560

[44]. Jing-Ying, L; Xiu-Li, X; Wen-Quan, L. Waste Manage. 2012, 32, 1209-1212.
http://dx.doi.org/10.1016/j.wasman.2012.01.026

[45]. Yoon, S. S.; Kim, D. O.; Parka, S. C.; Lee, Y. K.; Chae, H. Y.; Jung, S. B.; Nam, J. D. Microelectron. Eng. 2008, 85, 136-142.
http://dx.doi.org/10.1016/j.mee.2007.04.142

[46]. Takekoshi, T. Adv. Polym. Sci. 1990, 94, 1-25.
http://dx.doi.org/10.1007/BFb0043059

[47]. Sheng, Q. G.; Zhang, Yi. L.; Jia, Z. L.; Yang, S. Y. High Perform. Polym. 1999, 11, 167-173.
http://dx.doi.org/10.1088/0954-0083/11/2/001

[48]. Alexander, A.; Tsegelskaya, A. U.; Buzin, P. V.; Yablokava, M. Y. High Perform. Polym. 2007, 19, 711-721.
http://dx.doi.org/10.1177/0954008307081214

[49]. Bergmeister, J. J.; Taylor, L. T. Chem. Muter. 1992, 4, 729-737.
http://dx.doi.org/10.1021/cm00021a043

[50]. Madeline, D. G.; Spillane, S. A. Taylor, L. T. J. Vac. Sci. Technol. 1987, A5, 347-353.

[51]. Rancourt, J. D.; Taylor, L. T. Macromolecules 1987, 20, 790-795.
http://dx.doi.org/10.1021/ma00170a015

[52]. Eustis, S.; El-Sayed, M. A. Chem. Soc. Rev. 2006, 35, 209-217.
http://dx.doi.org/10.1039/b514191e


How to cite


Begum, S. Eur. J. Chem. 2014, 5(4), 618-627. doi:10.5155/eurjchem.5.4.618-627.1089
Begum, S. Fabrication of flexible nanostructured silver-polymer films for sensors and bio-warfare or bacterial treatment and conducting gold-silver-polymer film for flexible electronics. Eur. J. Chem. 2014, 5(4), 618-627. doi:10.5155/eurjchem.5.4.618-627.1089
Begum, S. (2014). Fabrication of flexible nanostructured silver-polymer films for sensors and bio-warfare or bacterial treatment and conducting gold-silver-polymer film for flexible electronics. European Journal of Chemistry, 5(4), 618-627. doi:10.5155/eurjchem.5.4.618-627.1089
Begum, Syeda. "Fabrication of flexible nanostructured silver-polymer films for sensors and bio-warfare or bacterial treatment and conducting gold-silver-polymer film for flexible electronics." European Journal of Chemistry [Online], 5.4 (2014): 618-627. Web. 19 Sep. 2019
Begum, Syeda. "Fabrication of flexible nanostructured silver-polymer films for sensors and bio-warfare or bacterial treatment and conducting gold-silver-polymer film for flexible electronics" European Journal of Chemistry [Online], Volume 5 Number 4 (31 December 2014)

DOI Link: https://doi.org/10.5155/eurjchem.5.4.618-627.1089
