Crystal structure of (2E)-1-(4-hydroxyphenyl)-3-(4-methoxyphenyl)prop-2-en-1-one


Fatma Yesilyurt (1) orcid , Abdullah Aydin (2,*) orcid , Halise Inci Gul (3) orcid , Mehmet Akkurt (4) orcid , Nefise Dilek Ozcelik (5) orcid

(1) Department of Pharmaceutical Chemistry, Faculty of Pharmacy, Ataturk University, 25240 Erzurum, Turkey
(2) Department of Mathematics and Science Education, Faculty of Education, Kastamonu University, 37200 Kastamonu, Turkey
(3) Department of Pharmaceutical Chemistry, Faculty of Pharmacy, Ataturk University, 25240 Erzurum, Turkey
(4) Department of Physics, Faculty of Sciences, Erciyes University, 38039 Kayseri, Turkey
(5) Department of Physics, Arts and Sciences Faculty, Aksaray University, 68100 Aksaray, Turkey
(*) Corresponding Author

Received: 11 May 2018 | Revised: 25 May 2018 | Accepted: 25 May 2018 | Published: 30 Jun 2018 | Issue Date: June 2018

Abstract

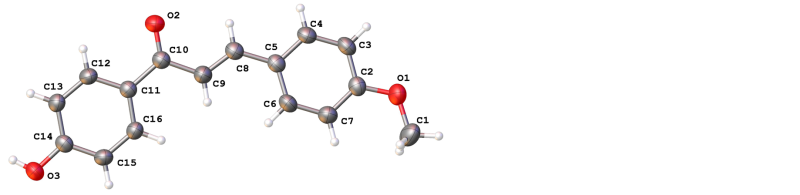

The compound, C16H14O3, (except H atoms) is almost planar [r.m.s. deviations for all non-H atoms = 0.001 Å] and the dihedral angle between the aromatic rings is 9.35 (7)°. In the crystal, molecules are linked by intermolecular O—H···O and C—H···O hydrogen bonds, forming a three-dimensional network structure. Furthermore, a weak π-π stacking interactions [centroid-to-centroid distance = 3.7055 (9) Å] contributes to the stabilization of the molecular packing. Crystal Data for C16H14O3 (M = 254.27 g/mol): Orthorhombic, space group Pbca (no. 61), a = 13.4563(16) Å, b = 11.4986(14) Å, c = 16.720(2) Å, V = 2587.1(5) Å3, Z = 8, T = 296(2) K, μ(MoKα) = 0.090 mm-1, Dcalc = 1.306 g/cm3, 61402 reflections measured (4.88° ≤ 2Θ ≤ 56.76°), 3240 unique (Rint = 0.0334, Rsigma = 0.0120) which were used in all calculations. The final R1 was 0.0438 (I≥2σ(I)) and wR2 was 0.1228 (all data).


Announcements


Our editors have decided to support scientists to publish their manuscripts in European Journal of Chemistry without any financial constraints.

1- The article processing fee will not be charged from the articles containing the single-crystal structure characterization between July 1, 2022 and August 15, 2022 (Voucher code: SINGLE2022).

2. Young writers will not be charged for the article processing fee between July 1, 2022 and August 15, 2022 (Voucher code: YOUNG2022).

3. The article processing fee will not be charged from the articles containing a part of the PhD thesis between July 1, 2022 and August 15, 2022 (Voucher code: PhD2022).

Editor-in-Chief

European Journal of Chemistry

Keywords


Chalcones; π-π Stacking; Aromatic ring; Methoxyphenyl; Crystal structure; Geometric parameter

Full Text:

PDF
PDF    Open Access

DOI: 10.5155/eurjchem.9.2.147-150.1733

Links for Article


| | | | | | |

| | | | | | |

| | | |

Related Articles




Article Metrics

icon graph This Abstract was viewed 1147 times | icon graph PDF Article downloaded 412 times

Funding information


Aksaray University, Science and Technology Application and Research Center, Aksaray, Turkey, for the use of the Bruker SMART BREEZE CCD diffractometer (Grant No. 2010K120480 of the State of Planning Organization)

Citations

/


[1]. Zhiyin Yu, Hao Jiang, Li Wang, Feng-Xian Yang, Jian-Ping Huang, Chongxi Liu, Xiaowei Guo, Wensheng Xiang, Sheng-Xiong Huang
Dimeric Pimprinine Alkaloids From Soil-Derived Streptomyces sp. NEAU-C99
Frontiers in Chemistry  8, , 2020
DOI: 10.3389/fchem.2020.00095
/

References


[1]. Das, U.; Gul, H. I.; Alcorn, J.; Shrivastav, A.; George, T.; Sharma, R. K.; Nienaber, K. H.; Clercq, E. D.; Balzarini, J.; Kawase, M.; Kan, N.; Tanaka, T.; Tani, S.; Werbovetz, K. A.; Yakovich, A. J.; Manavathu, E. K.; Stables, J. P.; Dimmock, J. R. Eur. J. Med. Chem. 2006, 41, 577-585.
https://doi.org/10.1016/j.ejmech.2005.12.014

[2]. Yerdelen, K. O.; Gul, H. I.; Sakagami, H.; Umemura, N.; Sukuroglu, M. Lett. Drug Des. Discov. 2015, 12, 643-649.
https://doi.org/10.2174/1570180812666150213225134

[3]. Gul, H. I.; Cizmecioglu, M.; Zencir, S.; Gul, M.; Canturk, P.; Atalay M.; Topcu, Z. J. Enzyme Inh. Med. Chem. 2009, 24, 804-807.

[4]. Gul, H. I.; Yerdelen, K. O.; Gul, M.; Das, U.; Pandit, B.; Li, P-K.; Secen H.; Sahin, F. Arch. Der Pharm. 2007, 340, 195-201.
https://doi.org/10.1002/ardp.200600072

[5]. Bilginer, S.; Gul, H. I.; Mete, E.; Das, U.; Sakagami, H.; Umemura, N.; Dimmock, J. R. J. Enzyme Inh. Med. Chem. 2013, 28, 974-980.

[6]. Bilginer, S.; Unluer, E.; Gul, H. I.; Mete, E.; Isik, S.; Vullo, D.; Ozensoy-Guler, O.; Beyaztas, S.; Capasso, C.; Supuran, C. T. J. Enzyme Inh. Med. Chem. 2014, 29, 495-499.

[7]. Yamali, C.; Tugrak, M.; Gul, H. I.; Tanc, M.; Supuran, C. T. J. Enzyme Inh. Med. Chem. 2016, 31, 1678-1681.

[8]. Singh, P.; Anand, A.; Kumar, V. Eur. J. Med. Chem. 2014, 85, 758-777.
https://doi.org/10.1016/j.ejmech.2014.08.033

[9]. Yerdelen, K. O. Synthesis and evaluation of the cytotoxic activities of the compounds 3-aryl-1-(4-hydroxyphenyl)-2-propen-1 ones and 1,5-diaryl-penta-1,4-dien-3-ones and their aminomethyl derivatives. PhD thesis, Institute of Medical Sciences, Ataturk University, Erzurum, Turkey, 2009.

[10]. Dimmock, J. R.; Kandepu, N. M.; Hetherington, M.; Quail, J. W.; Pugazhenthi, U.; Sudom, A. M.; Chamankhah, M.; Rose, P.; Pass, E.; Allen, T. M.; Halleran, S.; Szydlowski, J.; Mutus, B.; Tannous, M.; Manavathu, E. K.; Myers, T. G.; Clercq, E. D.; Balzarini, J. J. Med. Chem. 1998, 41, 1014-1026.
https://doi.org/10.1021/jm970432t

[11]. Bruker. APEX2 and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA, 2007.

[12]. Bruker. SADABS. Bruker AXS Inc., Madison, Wisconsin, USA, 2012.

[13]. Sheldrick, G. M. Acta Cryst. A 2008, 64, 112-122.
https://doi.org/10.1107/S0108767307043930

[14]. Farrugia, L. J. J. Appl. Cryst. 2012, 45, 849-854.
https://doi.org/10.1107/S0021889812029111

[15]. Spek, A. L. Acta Cryst. D 2009, 65, 148-155.
https://doi.org/10.1107/S090744490804362X

[16]. Sarojini, B. K.; Yathirajan, H. S.; Mustafa, K.; Sarfraz, H.; Bolte, M. Acta Cryst. E 2007, 63, o4477-o4477.
https://doi.org/10.1107/S1600536807052737

[17]. Sathya, S.; Reuben Jonathan, D.; Prathebha, K.; Jovita, J.; Usha, G. Acta Cryst. E 2014, 70, o1158-o1159.
https://doi.org/10.1107/S1600536814021953

[18]. Allen, F. H.; Kennard, O.; Watson, D. G.; Brammer, L.; Orpen, A. G.; Taylor, R. J. Chem. Soc. Perkin Trans. 1987, 2, S1-19.
https://doi.org/10.1039/p298700000s1


Supporting information


The Supplementary Material for this article can be found online at: Supplementary files

How to cite


Yesilyurt, F.; Aydin, A.; Gul, H.; Akkurt, M.; Ozcelik, N. Eur. J. Chem. 2018, 9(2), 147-150. doi:10.5155/eurjchem.9.2.147-150.1733
Yesilyurt, F.; Aydin, A.; Gul, H.; Akkurt, M.; Ozcelik, N. Crystal structure of (2E)-1-(4-hydroxyphenyl)-3-(4-methoxyphenyl)prop-2-en-1-one. Eur. J. Chem. 2018, 9(2), 147-150. doi:10.5155/eurjchem.9.2.147-150.1733
Yesilyurt, F., Aydin, A., Gul, H., Akkurt, M., & Ozcelik, N. (2018). Crystal structure of (2E)-1-(4-hydroxyphenyl)-3-(4-methoxyphenyl)prop-2-en-1-one. European Journal of Chemistry, 9(2), 147-150. doi:10.5155/eurjchem.9.2.147-150.1733
Yesilyurt, Fatma, Abdullah Aydin, Halise Inci Gul, Mehmet Akkurt, & Nefise Dilek Ozcelik. "Crystal structure of (2E)-1-(4-hydroxyphenyl)-3-(4-methoxyphenyl)prop-2-en-1-one." European Journal of Chemistry [Online], 9.2 (2018): 147-150. Web. 6 Jul. 2022
Yesilyurt, Fatma, Aydin, Abdullah, Gul, Halise, Akkurt, Mehmet, AND Ozcelik, Nefise. "Crystal structure of (2E)-1-(4-hydroxyphenyl)-3-(4-methoxyphenyl)prop-2-en-1-one" European Journal of Chemistry [Online], Volume 9 Number 2 (30 June 2018)

The other citation formats (EndNote | Reference Manager | ProCite | BibTeX | RefWorks) for this article can be found online at: How to cite item



DOI Link: https://doi.org/10.5155/eurjchem.9.2.147-150.1733
