European Journal of Chemistry 2018, 9(3), 178-181. doi:10.5155/eurjchem.9.3.178-181.1742

Crystal structure of a one-dimensional coordination polymer of gadolinium dibromoacetate with 4,4'-bipyridine


Leslaw Sieron (1,*) orcid , Agnieszka Czylkowska (2) orcid , Bartlomiej Rogalewicz (3) orcid

(1) Institute of General and Ecological Chemistry, Department of Chemistry, Lodz University of Technology, Zeromskiego 116, 90-924 Lodz, Poland.
(2) Institute of General and Ecological Chemistry, Department of Chemistry, Lodz University of Technology, Zeromskiego 116, 90-924 Lodz, Poland.
(3) Institute of General and Ecological Chemistry, Department of Chemistry, Lodz University of Technology, Zeromskiego 116, 90-924 Lodz, Poland.
(*) Corresponding Author

Received: 28 May 2018, Accepted: 18 Jun 2018, Published: 30 Sep 2018

Abstract

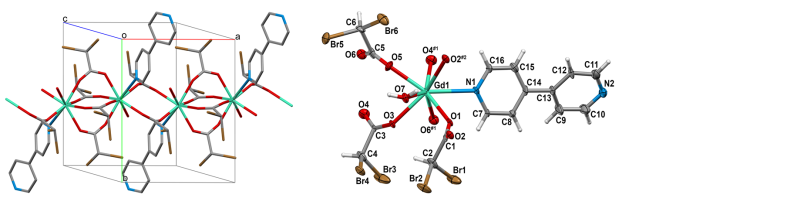

A new gadolinium(III) complex with 4,4’-bipyridine (4-bpy) and dibromoacetate ligand of general formula [Gd(4-bpy)(CBr2HCOO)3(H2O)]n, has been synthesized, crystallized and characterized by a single-crystal X-ray diffraction analysis. The gadolinium atom has an unsymmetrical eight-coordinate geometry, being coordinated by six oxygen atoms of dibromoacetate anions, one nitrogen atom of 4-bpy and one water molecule. The complex is a one-dimensional polymer as a result of dibromoacetate ligand bridging with the repeating monomeric units. There are π...π stacking interactions between the 4-bpy rings as well as O–H...O and O–H...N hydrogen bonds. Crystal Data for C16H13Br6GdN2O7 (Mw = 981.99 g/mol): triclinic, space group P-1 (no. 2), a = 9.7368(4) Å, b = 11.5416(4) Å, c = 11.7634(4) Å, α = 104.2750(10)°, β = 94.060(2)°, γ = 92.6900(10)°, = 1275.08(8) Å3, Z = 2, T = 90 K, μ(CuKα) = 28.190 mm-1, Dcalc = 2.558 g/cm3, 8399 reflections measured (7.782° ≤ 2Θ ≤ 133.18°), 4006 unique (Rint = 0.0409, Rsigma = 0.0639) which were used in all calculations. The final R1 was 0.0527 (I > 2σ(I)) and wR2 was 0.1396 (all data).


Keywords


Gd complex; 4,4’-Bipyridine; Carboxylate ligands; Octahedral geometry; Coordination polymer; Single crystal structure

Full Text:

PDF /    /


DOI: 10.5155/eurjchem.9.3.178-181.1742

Article Metrics


This Abstract was viewed 398 times | PDF Article downloaded 111 times

References

[1]. Liu, Y.; Li, Z.; Niu, N.; Zou. J.; Liu, F. J. Appl. Polym. Sci. 2018, 135(25), 46400.
https://doi.org/10.1002/app.46400

[2]. Mochizuki, S.; Ogiwara, N.; Takayanagi, M.; Nagaoka, M.; Kitagawa, S.; Uemura, T. Nat. Commun. 2018, 9(1), 329.
https://doi.org/10.1038/s41467-017-02736-1

[3]. Zheng, T. R.; Blatov, V. A.; Zhang, Y. Q.; Yang, Ch. H.; Qian, L. L.; Li, K.; Li, B. L.; Wu, B. J. Lumin. 2018, 199, 126-132.
https://doi.org/10.1016/j.jlumin.2018.03.025

[4]. Etaiw, S. E. -D. H.; El-bendary, M. M. J. Lumin. 2018, 199, 232-239.
https://doi.org/10.1016/j.jlumin.2018.03.041

[5]. Berillo, D.; A. Cundy, A. Carbohydr. Polym. 2018, 192, 166-175.
https://doi.org/10.1016/j.carbpol.2018.03.038

[6]. Zhang, X; Fu, J.; Zhang, D. S.; Geng, L. Polyhedron, 2018, 146, 12-18.
https://doi.org/10.1016/j.poly.2018.02.014

[7]. Emerson, A. J.; Chahine, A.; Batten, S. R.; Turner, D. R. Coord. Chem. Rev. 2018, 365, 1-22.
https://doi.org/10.1016/j.ccr.2018.02.012

[8]. Gayen, S.; Saha, D., Koner, S. J. Mol. Struct. 2018, 1162, 10-16.
https://doi.org/10.1016/j.molstruc.2018.02.090

[9]. Topa, M.; Ortyl, J.; Chachaj-Brekiesz, A.; Kamińska-Borek, I.; Pilch, M.; Popielarz, R. Spectrochim. Acta A 2018, 199, 430-440.
https://doi.org/10.1016/j.saa.2018.03.050

[10]. Chen, D.; Zhong, Y.; Zhang, C.; Xu, D.; Lin, Z. Inorg. Chem. Commun. 2018, 92, 74-77.
https://doi.org/10.1016/j.inoche.2018.04.009

[11]. Zhang, X. L.; Tang, G. M.; Wang, Y. T. Polyhedron 2018, 147, 26-35.
https://doi.org/10.1016/j.poly.2018.03.006

[12]. Einkauf, J. D.; Rue, K. L.; Ten Hoeve, H. A.; de Lill, D. T. J. Lumin. 2018, 197, 412-417.
https://doi.org/10.1016/j.jlumin.2018.01.045

[13]. Du, L.; Zhou, L. Z.; Ma, Y. L.; Wang, Y. N.; Wang, D. W.; Zhao, Q. H. Z. Anorg. Allg. Chem. 2018, 643(24), 2116-2123.
https://doi.org/10.1002/zaac.201700151

[14]. Datta, A.; Das, K.; Mendiratta, S.; Massera, C.; Garribba, E. J. Mol. Struct. 2017, 1139, 390-394.
https://doi.org/10.1016/j.molstruc.2017.03.060

[15]. Rohde, A.; Urland, W. Acta Cryst. E 2006, 62, m1618-m1619.
https://doi.org/10.1107/S1600536806022872

[16]. Rohde, A.; Urland, W. Acta Cryst. E 2006, 62, m2843-m2845.
https://doi.org/10.1107/S160053680603995X

[17]. Rohde, A.; John, D.; Urland, W. Z. Kristallogr., 2005, 220, 177-182.

[18]. John, D.; Urland, W. Eur. J. Inorg. Chem. 2005, 4486-4489.
https://doi.org/10.1002/ejic.200500734

[19]. Czylkowska, A.; Kruszynski, R.; Czakis-Sulikowska, D.; Markiewicz. M. J. Coord. Chem. 2007, 60(24), 2659-2669.
https://doi.org/10.1080/00958970701299550

[20]. Kruszynski, R.; Czylkowska, A.; Czakis-Sulikowska, D. J. Coord. Chem. 2006, 59(6), 681-690.
https://doi.org/10.1080/00958970500345356

[21]. Czylkowska. A. J. Therm. Anal. Calorim. 2015, 122, 339-347.

[22]. Bruker (2008). APEX2. Bruker AXS Inc., Madison, Wisconsin, USA.

[23]. Bruker (2009). SADABS. Bruker AXS Inc., Madison, Wisconsin, USA.

[24]. Sheldrick, G. M. Acta Cryst. C 2015, 71, 3-8.
https://doi.org/10.1107/S2053229614024218

[25]. Sheldrick, G. M. Acta Cryst. A 2015, 71, 3-8.
https://doi.org/10.1107/S2053273314026370

[26]. Macrae, C. F.; Bruno, I. J.; Chisholm, J. A.; Edgington, P. R.; McCabe, P.; Pidcock, E.; Rodriguez-Monge, L.; Taylor, R.; van de Streek, J.; Wood, P. A. J. Appl. Cryst. 2008, 41, 466-470.
https://doi.org/10.1107/S0021889807067908

[27]. Spek, A. L. Acta Cryst. D 2009, 65, 148-155.
https://doi.org/10.1107/S090744490804362X

[28]. Li, X.; Zhang, Z. Y.; Zou, Y. Q. Eur. J. Inorg. Chem. 2005, 2909-2918.
https://doi.org/10.1002/ejic.200500001


How to cite


Sieron, L.; Czylkowska, A.; Rogalewicz, B. Eur. J. Chem. 2018, 9(3), 178-181. doi:10.5155/eurjchem.9.3.178-181.1742
Sieron, L.; Czylkowska, A.; Rogalewicz, B. Crystal structure of a one-dimensional coordination polymer of gadolinium dibromoacetate with 4,4'-bipyridine. Eur. J. Chem. 2018, 9(3), 178-181. doi:10.5155/eurjchem.9.3.178-181.1742
Sieron, L., Czylkowska, A., & Rogalewicz, B. (2018). Crystal structure of a one-dimensional coordination polymer of gadolinium dibromoacetate with 4,4'-bipyridine. European Journal of Chemistry, 9(3), 178-181. doi:10.5155/eurjchem.9.3.178-181.1742
Sieron, Leslaw, Agnieszka Czylkowska, & Bartlomiej Rogalewicz. "Crystal structure of a one-dimensional coordination polymer of gadolinium dibromoacetate with 4,4'-bipyridine." European Journal of Chemistry [Online], 9.3 (2018): 178-181. Web. 18 Nov. 2019
Sieron, Leslaw, Czylkowska, Agnieszka, AND Rogalewicz, Bartlomiej. "Crystal structure of a one-dimensional coordination polymer of gadolinium dibromoacetate with 4,4'-bipyridine" European Journal of Chemistry [Online], Volume 9 Number 3 (30 September 2018)

DOI Link: https://doi.org/10.5155/eurjchem.9.3.178-181.1742
