European Journal of Chemistry

Utilization of UPLC-tandem mass spectrometry for quantitation of colouring matters in dietary formulation


Main Article Content

Wafaa Abdou Zaghary
Ahmed Mostafa Abdalla
Emily Tawfik Hanna
Marwa Abdel Rahman Tohamy Zanoun

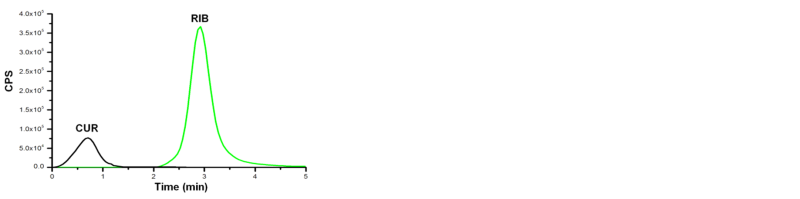

A simple and sensitive ultra-performance liquid chromatography with Tandem Mass Spectrometric detection (UPLC-MS/MS) method was developed and validated for the simultaneous quantitation of two food colouring matters, Curcumin (CUR) and Riboflavin (RIB). Chromatographic separation was done on Hypersil gold 50×2.1 mm (1.9 μm) column, with gradient programing of mobile phase starting with aqueous 0.1% formic acid and increasing the percentage of 0.1% formic acid in acetonitrile. The utilization of multiple reaction monitoring (MRM) improved the selectivity of detection and decreased the matrix effect.  The method was linear in the range of 5-500 ng/mL for CUR and RIB. Intra- and inter-day reproducibility were within the accepted criteria. The method was successfully applied for the determination the laboratory prepared mixtures of the two selected colouring matters. The use of mass spectrometry enhanced the selectivity and sensitivity of detection which allows the robust use of the method in routine quality control tests of the two colouring matters (CUR and RIB).

icon graph This Abstract was viewed 1048 times | icon graph Article PDF downloaded 555 times

How to Cite
Zaghary, W. A.; Abdalla, A. M.; Hanna, E. T.; Zanoun, M. A. R. T. Utilization of UPLC-Tandem Mass Spectrometry for Quantitation of Colouring Matters in Dietary Formulation. Eur. J. Chem. 2019, 10, 239-243.

Article Details

Crossref - Scopus - Google - European PMC

[1]. Tada, A.; Jin, Z. L.; Sugimoto, N.; Sato, K.; Yamazaki, T.; Tanamoto, K. Food Hyg. Safe. Sci. 2005, 46(5), 198-204.

[2]. Jasim, F.; Ali, F. Microchem. J. 1988, 38(1), 106-110.

[3]. Lopez-de-Alba, P. L.; Lopez-Martinez, L.; Cerda, V.; Amador-Hernandez, J. J. Brazil. Chem. Soc. 2006, 17, 715-722.

[4]. Garcia, L.; Blazquez, S.; San-Andres, M. P.; Vera, S. Anal. Chim. Acta 2001, 434(2), 193-199.

[5]. Petteys, B. J.; Frank, E. L. Clin. Chim. Acta 2011, 412(1), 38-43.

[6]. Tang, X.; Cronin, D. A.; Brunton, N. P. J. Food Compos. Anal. 2006, 19(8), 831-837.

[7]. Jadhav, B. K.; Mahadik, K. R.; Paradkar, A. R. Chromatographia 2007, 65(7), 483-488.

[8]. Jayaprakasha, G. K.; Jagan, M. R. L.; Sakariah, K. K. J. Agr. Food Chem. 2002, 50(13), 3668-3672.

[9]. Berset, J. D.; Ochsenbein, N. Chemosphere 2012, 88(5), 563-569.

[10]. Chen, X. H.; Zhao, Y. G.; Shen, H. Y.; Jin, M. C. J. Chromatogr. A 2012, 1263, 34-42.

[11]. Vallverdu-Queralt, A.; Regueiro, J.; Martinez-Huelamo, M.; Rinaldi, A. J. F.; Leal, L. N.; Lamuela-Raventos, R. M. Food Chem. 2014, 154, 299-307.

[12]. ICH Harmonized Tripartite Guideline, Validation of Analytical Procedures: Text and Methodology, Q2(R1).. Current Step 4 Version, 2005.

[13]. Shrivastava, A.; Gupta, V. B. Chron. Young. Sci. SP. 2011, 2(1), 21-25.

Supporting Agencies

The Pharmaceutical Services Centre and LC-MS Unit, Faculty of Pharmacy, Helwan University, Cairo, 11795, Egypt.
