Simultaneous determination of levonorgestrel and ethinyl estradiol in combined dosage form utilizing spectrophotometric methods and high performance thin layer chromatographic method on nanosilica gel plates
Mohammed Salem Rizk (1)




(1) Analytical Chemistry Department, Faculty of Pharmacy, Helwan University, EinHelwan, 11795, Cairo, Egypt
(2) Analytical Chemistry Department, Faculty of Pharmacy, Helwan University, EinHelwan, 11795, Cairo, Egypt
(3) Pharmaceutical Analytical Chemistry Department, Faculty of Pharmacy, October University for Modern Sciences and Arts, 11787, 6 October City, Egypt
(4) Chemical Industrial Development Company (CID), Giza, 12551, Egypt
(*) Corresponding Author
Received: 20 Dec 2016 | Revised: 16 Jan 2017 | Accepted: 19 Jan 2017 | Published: 31 Mar 2017 | Issue Date: March 2017
Abstract

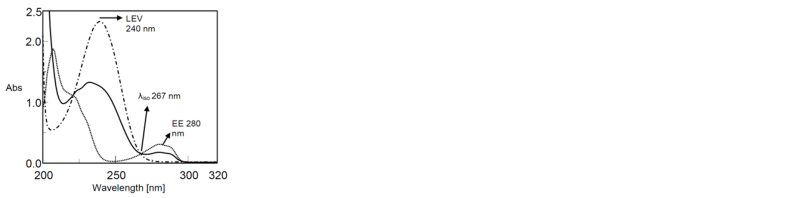

Simultaneous quantification of levonorgestrel (LEV) and ethinyl estradiol (EE) was performed utilizing five different spectrophotometric methods and a high performance thin layer chromatographic method (HPTLC). The applied spectrophotometric methods were based on either ratio spectra namely; ratio difference, ratio subtraction and derivative ratio or the presence of isosbestic point specifically; absorbance subtraction and amplitude modulation. The proposed methods had the ability to resolve the overlapped spectra of the drugs with a linear relationship in the concentration range 1-65 µg/mL and 1-95 µg/mL for LEV and EE, respectively. The developed HPTLC method has revealed a good separation of the drugs upon utilizing Nano Silica Gel on TLC plates with fluorescent indicator 254 nm glass plates as the stationary phase and chloroform: methanol (99:1, v:v) as the mobile phase. The proposed HPTLC method has shown high sensitivity, where the linearity range was 0.02-3.00 µg/band and 0.5-20.0 µg/band, for LEV and EE, respectively. The proposed methods were successfully applied for the analysis of laboratory prepared mixtures as well as combined dosage form. Validation for all methods was conducted in compliance with the ICH guidelines proving the methods to be selective, linear, precise and accurate. The proposed methods were statistically compared with the pharmacopoeial method, where the obtained results showed no significant difference regarding accuracy and precision.
Announcements
One of our sponsors will cover the article processing fee for all submissions made between May 17, 2023 and June 16, 2023 (Voucher code: SPONSOR2023).
Editor-in-Chief
European Journal of Chemistry
Keywords
Full Text:
PDF

DOI: 10.5155/eurjchem.8.1.52-59.1523
Links for Article
| | | | | | |
| | | | | | |
| | | |
Related Articles
Article Metrics


References
[1]. Croxatto, H. B.; Diaz, S.; Salvatierra, A. M.; Morales, P.; Ebenserger, C.; Brandeis, A. Contraception 1987, 36, 193-201.
https://doi.org/10.1016/0010-7824(87)90014-X
[2]. Sweetman, S. C. Martindale, The Complete Drug Reference, 31st edition, Pharmaceutical Press, England, 2002.
[3]. Halbreich, U.; Freeman, E. W.; Rapkin, A. J.; Cohen, L. S.; Grubb, G. S.; Bergeron, R.; Smith, L.; Mirkin, S.; Constantin, G. D. Contraception 2012, 85, 19-27.
https://doi.org/10.1016/j.contraception.2011.05.008
[4]. Archer, D. F.; Kovalevsky, G.; Ballagh, S. A.; Grubb, G. Contraception 2009, 80, 245-253.
https://doi.org/10.1016/j.contraception.2009.03.006
[5]. Falsetti, L.; Gabignani, E. Contraception 1990, 42, 611-619.
https://doi.org/10.1016/0010-7824(90)90002-D
[6]. Subramanian, A.; Wickersham, R. M.; Schweain, S. L.; Scott, J. A.; Meives, C. A.; Burnham, T. H.; Reilly, C. H.; Gremillion, S. W.; Hunter, B. J. Drug Facts and Comparisons, Wolter Kluwer Health, USA, 2009, pp. 123.
[7]. Koda-Kimble, M. A.; Young, L. Y.; Kradjan, W. A.; Guglielmo, B. J.; Alldredge, B. K.; Corelli, R. L. Applied Therapeutics, 8th edition, Lippincott Williams and Wilkins, 2007.
[8]. The United States Pharmacopoeia USP 38, the National Formulary NF33, US Pharmacopeial Convention: Rockville, 2015.
[9]. Ravindra, A.; Hima, P.; Swamy, K. N.; Kumar, K. V. J. Sci. Innov. Res. 2013, 2, 642-650.
[10]. Theron, H. B.; Coetzee, C.; Sutherland, F. C. W.; Wiesner, J. L.; Swart, K. J. J. Chromatogr. B: Biomed. Sci. Appl. 2004, 813, 331-336.
[11]. Matejıcek, D.; Kuban, V. Anal. Chim. Acta 2007, 588, 304-315.
https://doi.org/10.1016/j.aca.2007.02.028
[12]. Khorrami, A. R.; Mehrseresht, S. J. Chromatogr. B: Anal. Technol. Biomed. Life Sci. 2008, 867, 264-269.
https://doi.org/10.1016/j.jchromb.2008.04.017
[13]. Qiao, Y.; Yang, H.; Wang, B.; Song, J.; Deng, A. Talanta 2009, 80, 98-103.
https://doi.org/10.1016/j.talanta.2009.06.029
[14]. Karnik, Y. M.; Gowekar, N. M. Pharm. Sin. 2014, 5, 22-28.
[15]. Fakhari, A. R. B.; Khorrami, A. R.; Shamsipur, M. Anal. Chim. Acta 2006, 572, 237-242.
https://doi.org/10.1016/j.aca.2006.05.029
[16]. Berzas, J. J.; Castillo, B. D.; Casta ̃neda, G.; Pinilla, M. J. Talanta 1999, 50, 261-268.
https://doi.org/10.1016/S0039-9140(99)00030-2
[17]. Ghonein, M. M.; Baumann, W.; Hamman, E.; Tawfik, A. Talanta 2004, 64, 857-864.
https://doi.org/10.1016/j.talanta.2004.03.057
[18]. Nevado, J. J. B.; Flores, J. R.; Penalvo, G. C. Anal. Chim. Acta 1997, 340, 257-265.
https://doi.org/10.1016/S0003-2670(96)00543-0
[19]. Berzas, J. J.; Rodriguez, J.; Castaneda, G. Analyst 1997, 122, 41-44.
https://doi.org/10.1039/a604558h
[20]. Tatar, S.; Atmaca, S. Pharmazie 1996, 51, 251-252.
[21]. Shariati-Rad, M.; Irandoust, M. Open Sci. J. Anal. Chem. 2015, 2, 1-6.
[22]. Ahmadia, F.; Ghordoie-Milana, R. J. Rep. Pharm. Sci. 2012, 1, 7-18.
[23]. Sohrabi, M. R.; Emrarian, M.; Javanbakht, M. J. Appl. Sci. 2010, 10, 1802-1805.
https://doi.org/10.3923/jas.2010.1802.1805
[24]. Salem, H.; Mohamed, D. Spectrochim. Acta A 2015, 140, 166-173.
https://doi.org/10.1016/j.saa.2014.12.099
[25]. Lotfy, H. M.; Mohamed, D.; Mowaka, S. Spectrochim. Acta A 2015, 149, 441-451.
https://doi.org/10.1016/j.saa.2015.04.076
[26]. Lotfy, H. M.; Hegazy, M. A. Spectrochim. Acta A 2012, 96, 259-270.
https://doi.org/10.1016/j.saa.2012.04.095
[27]. Lotfy, H. M.; Monir, H. H.; Abdel-Aleem, A. A. Chilean Chem. Soc. 2012, 57, 1199-1207.
https://doi.org/10.4067/S0717-97072012000300001
[28]. Lotfy, H. M.; Hagazy, M. A. Spectrochim. Acta A 2013, 113, 107-114.
https://doi.org/10.1016/j.saa.2013.04.064
[29]. Lotfy, H. M.; Hassan, N. Y.; Elgizawy, S. M.; Saleh, S. S. Chilean Chem. Soc. 2013, 58, 1651-1657.
https://doi.org/10.4067/S0717-97072013000200001
[30]. El-Bardicy, M. G.; Lotfy, H. M.; El-Sayed, M. A.; El-Tarras, M. F. J. AOAC Int. 2008, 91, 299-310.
[31]. Salem, M.; El-Bardicy, M.; El-Tarras, M.; El- Zanfally, E. Pharm. Biomed. Anal. 2002, 30, 21-33.
https://doi.org/10.1016/S0731-7085(02)00094-8
[32]. Darwish, H. W.; Hassan, S. A.; Salem, M. Y.; El-Zeiny, B. A. Spectrochim. Acta A 2011, 83, 140-148.
https://doi.org/10.1016/j.saa.2011.08.005
[33]. Hadad, G. M.; El-Gindy, A.; Mahmoud, W. M. M. Spectrochim. Acta A 2008, 70, 655-663.
https://doi.org/10.1016/j.saa.2007.08.016
[34]. Lotfy, H. M.; Saleh, S. S.; Hassan, N. Y.; Salem, H. Spectrochim. Acta A 2014, 126, 112-121.
https://doi.org/10.1016/j.saa.2014.01.130
[35]. Patel, C. V.; Khandhar, A. P.; Captain, A. D.; Patel, K. T. Eurasian J. Anal. Chem. 2007, 2, 160-171.
[36]. Lotfy, H. M. Int. J. Pharm. Pharm. Sci. 2014, 6, 735-741.
[37]. Lotfy, H. M.; Hegazy, M. A.; Rezk, M. R.; Omran, Y. R. Spectrochim. Acta A 2014, 126, 197-207.
https://doi.org/10.1016/j.saa.2014.02.005
[38]. International Conference on Harmonization (ICH), Q2B: Validation of Analytical Procedures: Methodology, 62, US FDA, Federal Register 1997.
