X-ray crystal structure analysis of 5-bromospiro[indoline-3,7'-pyrano[3,2-C:5,6-C']dichromene]-2,6',8'-trione


Varun Sharma (1) orcid , Bubun Banerjee (2) orcid , Gurpreet Kaur (3) orcid , Vivek Kumar Gupta (4,*) orcid

(1) Department of Physics, University of Jammu, Jammu Tawi-180006, India
(2) Department of Chemistry, Indus International University, V.P.O Bathu, Distt. Una, Himachal Praesh- 174301, India
(3) Department of Chemistry, Indus International University, V.P.O Bathu, Distt. Una, Himachal Praesh- 174301, India
(4) Department of Physics, University of Jammu, Jammu Tawi-180006, India
(*) Corresponding Author

Received: 27 Jan 2021 | Revised: 27 Feb 2021 | Accepted: 07 Mar 2021 | Published: 30 Jun 2021 | Issue Date: June 2021

Abstract

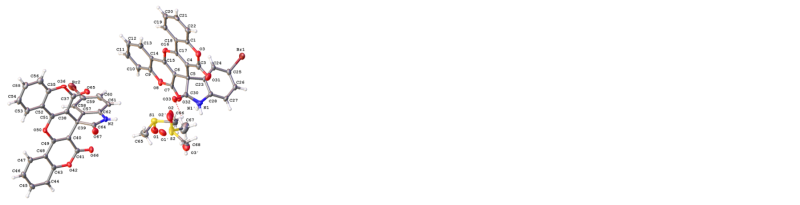

An analog of spirooxindole[pyrano-bis-2H-l-benzopyran] derivatives namely 5-bromospiro [indoline-3,7'-pyrano[3,2-c:5,6-c']dichromene]-2,6',8'-trione was synthesized via one-pot pseudo three-component reaction of one equivalent of 5-bromoisatin and two equivalents of 4-hydroxycoumarin using mandelic acid as a naturally occurring organo catalyst in aqueous ethanol under reflux conditions. The synthesized compound was characterized by FT-IR, 1H NMR, 13C NMR, and HRMS data. Crystal structure was determined by using single X-ray crystallography technique. It was found that the crystals are triclinic with space group P-1, C108H60Br4N4O29S2: a = 11.8333(6) Å, b = 12.8151(6) Å, c = 17.1798(8) Å, α = 77.317(4)°, β = 74.147(4)°, γ = 66.493(5)°, = 2280.0(2) Å3, Z = 1, T = 149.99(10) K, μ(MoKα) = 1.902 mm-1, Dcalc = 1.647 g/cm3, 11545 reflections measured (3.836° ≤ 2Θ ≤ 50.998°), 8310 unique (Rint = 0.0488, Rsigma = 0.0875) which were used in all calculations. The final R1 was 0.0622 (I > 2σ(I)) and wR2 was 0.1994 (all data). The crystal structure was solved by direct methods and refined by full-matrix least-squares procedure to a final R-value of 0.0622 for 6264 observed reflections. The crystal structure was stabilized by an elaborate system of N-H···O, O-H···O, C-H···π, and π···π interactions involving solvent molecules to form supramolecular structure.


Announcements


Our editors have decided to support scientists to publish their manuscripts in European Journal of Chemistry without any financial constraints.

1- The article processing fee will not be charged from the articles containing the single-crystal structure characterization or a DFT study between September 15, 2023 and October 31, 2023 (Voucher code: FALL2023).

2. A 50% discount will be applied to the article processing fee for submissions made between September 15, 2023 and October 31, 2023 by authors who have at least one publication in the European Journal of Chemistry (Voucher code: AUTHOR-3-2023).

3. Young writers will not be charged for the article processing fee between September 15, 2023 and October 31, 2023 (Voucher code: YOUNG2023).


Editor-in-Chief
European Journal of Chemistry

Keywords


Benzopyran; Spirooxindoles; Direct methods; Solvent molecules; Hydrogen bonding; X-ray crystallography

Full Text:

PDF
PDF    Open Access

DOI: 10.5155/eurjchem.12.2.187-191.2086

Links for Article


| | | | | | |

| | | | | | |

| | | |

Related Articles




Article Metrics

icon graph This Abstract was viewed 877 times | icon graph PDF Article downloaded 302 times

Funding information


University of Jammu, Jammu, India, for financial support under Rashtriya Uchchatar Shiksha Abhiyan (RUSA) 2.0 Project. (Ref. No: RUSA/JU/ 2/2019-20/111/3588-3636).

Citations

/


[1]. Varun Sharma, Bubun Banerjee, Aditi Sharma, Vivek Kumar Gupta
Synthesis, X-ray crystal structure, Hirshfeld surface analysis, and molecular docking studies of DMSO/H2O solvate of 5-chlorospiro[indoline-3,7'-pyrano[3,2-c:5,6-c']dichromene]-2,6',8'-trione
European Journal of Chemistry  12(4), 382, 2021
DOI: 10.5155/eurjchem.12.4.382-388.2141
/


[2]. Bubun Banerjee, Varun Sharma, Aditi Sharma, Gurpreet Kaur, Vivek Kumar Gupta
Synthesis, characterization and Hirshfeld surface analysis of 2-aminobenzothiazol with 4-fluorobenzoic acid co-crystal
European Journal of Chemistry  13(2), 206, 2022
DOI: 10.5155/eurjchem.13.2.206-213.2234
/


References


[1]. Banerjee, B. Chem. Select 2017, 2 (23), 6744-6757.
https://doi.org/10.1002/slct.201701441

[2]. Banerjee, B.; Kaur, G.; Kaur, N. Curr. Org. Chem. 2021, 25 (1), 209-222.
https://doi.org/10.2174/1385272824999201019162655

[3]. Banik, B. K.; Banerjee, B.; Kaur, G.; Saroch, S.; Kumar, R. Molecules 2020, 25 (24), 5918-5918.
https://doi.org/10.3390/molecules25245918

[4]. Banerjee, B.; Kaur, G. Curr. Microw. Chem. 2020, 7 (1), 5-22.
https://doi.org/10.2174/2213335607666200226102010

[5]. Kaur, G.; Bala, K.; Devi, S.; Banerjee, B. Curr. Green Chem. 2018, 5 (3), 150-167.
https://doi.org/10.2174/2213346105666181001113413

[6]. Almansour, A. I.; Kumar, R. S.; Arumugam, N.; Kanagalaksmi, S.; Suresh, J. Acta Crystallogr. Sect. E Struct. Rep. Online 2012, 68 (4), o1172-o1172.
https://doi.org/10.1107/S1600536812000827

[7]. Almansour, A. I.; Kumar, R. S.; Arumugam, N.; Vishnupriya, R.; Suresh, J. Acta Crystallogr. Sect. E Struct. Rep. Online 2012, 68 (4), o1194-o1194.
https://doi.org/10.1107/S1600536812000827

[8]. Almansour, A. I.; Kumar, R. S.; Arumugam, N.; Devi Shree, P.; Suresh, J. Acta Crystallogr. Sect. E Struct. Rep. Online 2012, 68 (3), o744-o744.
https://doi.org/10.1107/S1600536812006332

[9]. Parthasarathy, K.; Praveen, C.; Saranraj, K.; Balachandran, C.; Kumar, P. S. Med. Chem. Res. 2016, 25 (10), 2155-2170.
https://doi.org/10.1007/s00044-016-1645-4

[10]. Kaur, G.; Singh, A.; Bala, K.; Devi, M.; Kumari, A.; Devi, S.; Devi, R.; Gupta, V. K.; Banerjee, B. Curr. Org. Chem. 2019, 23 (16), 1778-1788.
https://doi.org/10.2174/1385272822666190924182538

[11]. Kaur, G.; Shamim, M.; Bhardwaj, V.; Gupta, V. K.; Banerjee, B. Synth. Commun. 2020, 50 (10), 1545-1560.
https://doi.org/10.1080/00397911.2020.1745844

[12]. Sheldrick, G. M. Acta Crystallogr. A Found. Adv.2015, 71, 3-8.
https://doi.org/10.1107/S2053273314026370

[13]. Farrugia, L. J. J. Appl. Crystallogr.1997, 30 (5), 565-565.
https://doi.org/10.1107/S0021889897003117

[14]. Nardelli, M. J. Appl. Crystallogr.1995, 28 (5), 659-659.
https://doi.org/10.1107/S0021889895007138

[15]. Spek, A. L. Acta Crystallogr. D Biol. Crystallogr. 2009, 65, 148-155.
https://doi.org/10.1107/S090744490804362X

[16]. Farrugia, L. J. J. Appl. Crystallogr.2012, 45 (4), 849-854.
https://doi.org/10.1107/S0021889812029111

[17]. Allen, F. H.; Kennard, O.; Watson, D. G.; Brammer, L.; Orpen, A. G.; Taylor, R. J. Chem. Soc., Perkin Trans. 2 1987, 12, S1-S19.
https://doi.org/10.1039/p298700000s1
