European Journal of Chemistry

Synthesis, characterization, X-ray crystal structure and Hirshfeld surface analysis of Ni(II) complex of 1,2-bis(pyridin-2-ylmethylene)hydrazine


Main Article Content

Meman Sahu
Amit Kumar Manna
Dinesh De
Goutam Kumar Patra

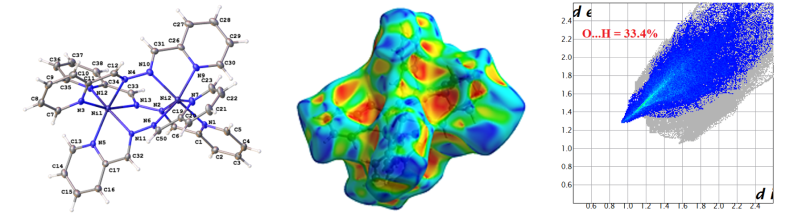

We report the synthesis, characterization, X-ray crystal structure and Hirshfeld surface analysis of Ni(II) perchlorate complex (1, Ni2L3·4ClO4·2CH3CN) of 1,2-bis(pyridin-2-ylmethylene)hydrazine (L) ligand. The X-ray crystallographic study of complex 1 reveals that in the presence of Ni(II) ions,the ligand L forms a dimeric triple helix with a Ni(II)-Ni(II) distance of 3.794 Å. Crystal data for C40H36Cl4N14Ni2O16: Monoclinic, space group P21/c (no. 14), a = 20.7558(19) Å, b = 13.1937(12) Å, c = 20.0181(18) Å, β = 96.9510(10)°, = 5441.6(9) Å3, Z = 4, T = 293.15 K, μ(MoKα) = 0.965 mm-1, Dcalc = 1.498 g/cm3, 38075 reflections measured (1.976° ≤ 2Θ ≤ 43.728°), 6557 unique (Rint = 0.0695, Rsigma = 0.0466) which were used in all calculations. The final R1 was 0.0518 (I > 2σ(I)) and wR2 was 0.1270 (all data). The Hirshfeld surface analysis of complex 1 shows that C···H, H···H, N···H and O···H interactions of 10.9, 26.4, 6.7, and 33.4%; respectively, which exposed that the main intermolecular interactions were H···H intermolecular interactions.

icon graph This Abstract was viewed 646 times | icon graph Article PDF downloaded 261 times icon graph Article CIF FILE downloaded 0 times

How to Cite
Sahu, M.; Manna, A. K.; De, D.; Patra, G. K. Synthesis, Characterization, X-Ray Crystal Structure and Hirshfeld Surface Analysis of Ni(II) Complex of 1,2-bis(pyridin-2-ylmethylene)hydrazine. Eur. J. Chem. 2022, 13, 1-7.

Article Details

Crossref - Scopus - Google - European PMC

[1]. Stratton, W. J.; Busch, D. H. The Complexes of Pyridinaldazine with Iron(II) and Nickel(II). J. Am. Chem. Soc. 1958, 80 (6), 1286-1289.

[2]. Stratton, W. J.; Busch, D. H. The Complexes of Pyridinaldazine with Iron(II) and Nickel(II). II. J. Am. Chem. Soc. 1958, 80 (13), 3191-3195.

[3]. Stratton, W. J.; Busch, D. H. The Complexes of Pyridinaldazine. III. Infrared Spectra and Continued Synthetic Studies. J. Am. Chem. Soc. 1960, 82 (18), 4834-4839.

[4]. Zimmer, M.; Tocher, D. A.; Patra, G. K.; Naskar, J. P.; Datta, D. First Example of a Double Stranded Helicate with Square-Planar Coordination for the Metal. Indian J. Chem. Sect. A 1999, 38, 1087-1091.

[5]. Pal, P. K.; Chowdhury, S.; Purkayastha, P.; Tocher, D. A.; Datta, D. A Novel Double-Stranded Dinuclear Copper(I) Helicate Having a Photoluminescent CuI2N8 Chromophore. Inorg. Chem. Commun. 2000, 3 (11), 585-589.

[6]. Stratton, W. J. Metal Complexes with Azine Ligands. II. Iron(II), Cobalt(II), and Nickel(II) Complexes with 2-Pyridyl Methyl Ketazine. Inorg. Chem. 1970, 9 (3), 517-520.

[7]. Stratton, W. J.; Rettig, M. F.; Drury, R. F. Metal Complexes with Azine Ligands. I. Ligand Hydrolysis and Template Synthesis in the Iron(II)-2-Pyridinaldazine System. Inorganica Chim. Acta 1969, 3, 97-102.

[8]. Boyd, P. D. W.; Gerloch, M.; Sheldrick, G. M. Crystal Structure of Tris-µ-[2,5-Di(2-Pyridyl)-3,4-Diazahexa-2,4-Diene]-Dicobalt(II) Di[Aquotrichlorozincate(II)] Tetrachlorozincate(II) Tetrahydrate: A Helical Binuclear Cobalt(II) Cation. J. Chem. Soc., Dalton Trans. 1974, No. 10, 1097-1102.

[9]. Hamblin, J.; Jackson, A.; Alcock, N. W.; Hannon, M. J. Triple Helicates and Planar Dimers Arising from Silver(i) Coordination to Directly Linked Bis-Pyridylimine Ligands. J. Chem. Soc. 2002, No. 8, 1635.

[10]. Pal, S.; Pal, S. Syntheses, Structures and Properties of Trans-Dichloro ruthenium(II) Complexes with N4-Donor Schiff Bases. Polyhedron 2003, 22 (6), 867-873.

[11]. Mukherjee, A.; Dutta, A.; Jana, A. D.; Patra, G. K. Copper(I) and Silver(I) Coordination Assemblies of Imino-Pyridyl and Azino-Pyridyl Ligands: Syntheses, Crystal Structures, Spectroscopic and Photophysical Properties. Inorganica Chim. Acta 2013, 404, 131-143.

[12]. Mukherjee, A.; Chakrabarty, R.; Ng, S. W.; Patra, G. K. The Syntheses, Characterizations, X-Ray Crystal Structures and Properties of Cu(I) Complexes of a Bis-Bidentate Schiff Base Ligand. Inorganica Chim. Acta 2010, 363 (8), 1707-1712.

[13]. Patra, G. K.; Pal, P. K.; Mondal, J.; Ghorai, A.; Mukherjee, A.; Saha, R.; Fun, H.-K. Predesigned Synthesis of Dinuclear to Unusual Hexanuclear to 1D Coordination Polymer of Cu(I)-Halides and Their and Photophysical Properties. Inorganica Chim. Acta 2016, 447, 77-86.

[14]. Mondal, J.; Mukherjee, A.; Patra, G. K. CuX (X = I, Br and Cl) Based Coordination Polymers of Azino-Pyridyl Ligand and PPh3: Structural, Spectral, Electro-Chemical, and DFT Studies. Inorganica Chim. Acta 2017, 463, 44-53.

[15]. Manna, A. K.; Mondal, J.; Chandra, R.; Rout, K.; Patra, G. K. A Thio-Urea Based Chromogenic and Fluorogenic Chemosensor for Expeditious Detection of Cu2+, Hg2+ and Ag+ Ions in Aqueous Medium. J. Photochem. Photobiol. A Chem. 2018, 356, 477-488.

[16]. Patra, G. K.; Goldberg, I.; Chowdhury, S. K.; Maiti, B. C.; Sarkar, A.; Bangal, P. R.; Chakravorti, S.; Chattopadhyay, N.; Tocher, D. A.; Drew, M. G. B.; Mostafa, G.; Chowdhury, S.; Datta, D. A New Photoluminescent CuI2N6 Chromophore. New J. Chem. 2001, 25 (11), 1371-1373.

[17]. Patra, G. K.; Goldberg, I.; De, S.; Datta, D. Effect of the Size of Discrete Anions on the Nuclearity of a Complex Cation. CrystEngComm 2007, 9 (9), 828-832.

[18]. Patra, G. K.; Goldberg, I. Syntheses and Crystal Structures of Copper and Silver Complexes with New Imine Ligands − Air-Stable, Photoluminescent CuIN4 Chromophores. Eur. J. Inorg. Chem. 2003, 2003 (5), 969-977.

[19]. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J; Howard, J. A. K.; Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339-341.

[20]. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. A 2008, 64, 112-122.

[21]. Sheldrick, G. M. Crystal structure refinement with SHELX. Acta Crystallogr. C Struct. Chem. 2015, 71, 3-8.

[22]. Norret, M.; Makha, M.; Sobolev, A. N.; Raston, C. L. Controlling the Confinement of Fullerene C60 Molecules Using a Saddle Shape Ni(Ii) Macrocycle. New J. Chem. 2008, 32 (5), 808-812.

[23]. Spackman, M. A.; McKinnon, J. J. Fingerprinting Intermolecular Interactions in Molecular Crystals. CrystEngComm 2002, 4 (66), 378-392.

[24]. Meng, X. X. Applications of Hirshfeld surfaces to ionic and mineral crystals, Ph.D. Thesis, University of New England, 2004.

[25]. Pendás, A. M.; Luaña, V.; Pueyo, L.; Francisco, E.; Mori-Sánchez, P. Hirshfeld Surfaces as Approximations to Interatomic Surfaces. J. Chem. Phys. 2002, 117 (3), 1017-1023.

[26]. Desiraju, G. R. Crystal Engineering: A Holistic View. Angew. Chem. Int. Ed. Engl. 2007, 46 (44), 8342-8356.

[27]. McKinnon, J. J.; Fabbiani, F. P. A.; Spackman, M. A. Comparison of Polymorphic Molecular Crystal Structures through Hirshfeld Surface Analysis. Cryst. Growth Des. 2007, 7 (4), 755-769.

[28]. Schmidt, G. M. J. Photodimerization in the Solid State. Pure Appl. Chem. 1971, 27 (4), 647-678.

[29]. Wolff, S. K.; Grimwood, D. J.; McKinnon, J. J.; Turner, M. J.; Jayatilaka, D.; Spackman, M. A. CrystalExplorer (Version 3.1), University of Western Australia, 2012.

Supporting Agencies

The Department of Science and Technology (SR/FST/CSI-264/2014 and EMR/2017/0001789) and the Department of Biotechnology, Government of India, New Delhi India.
